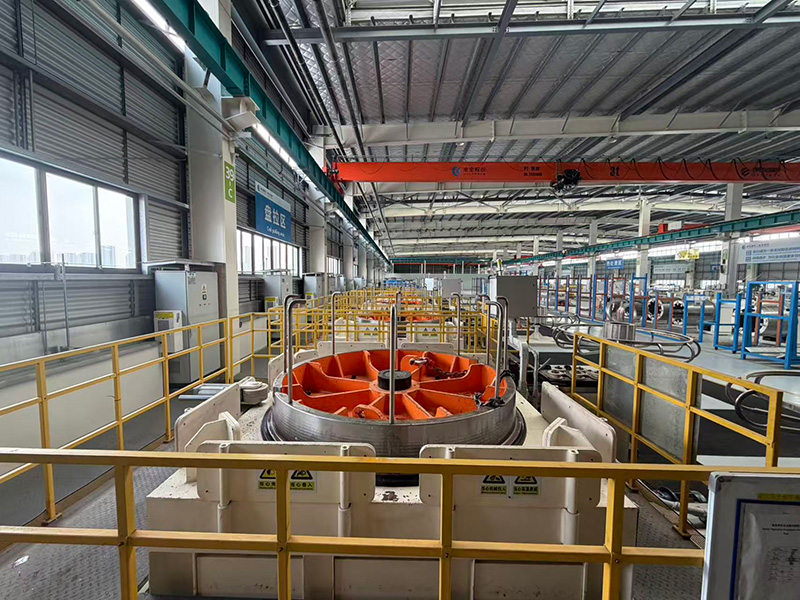

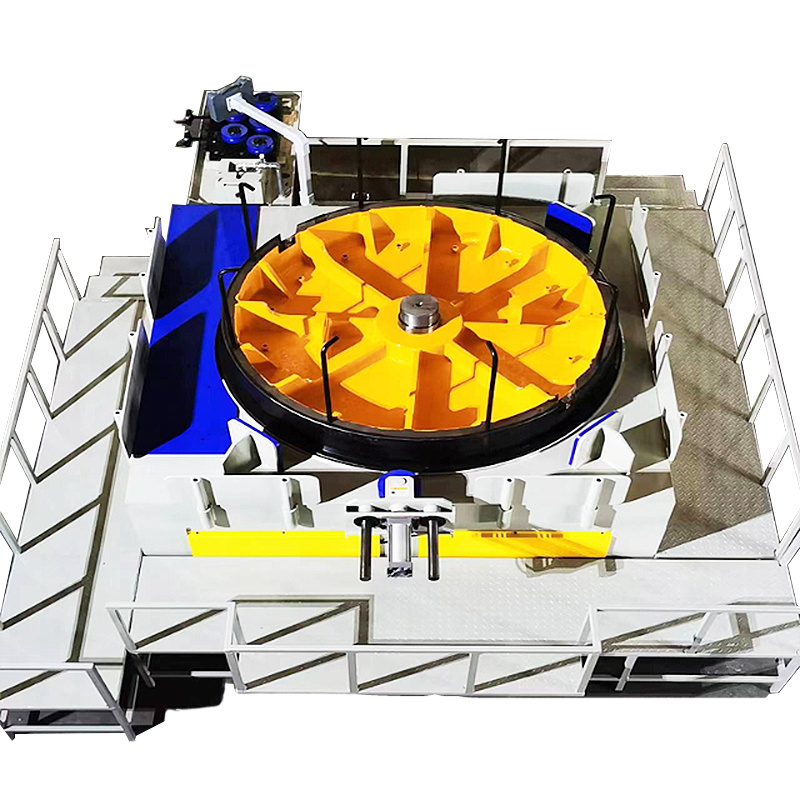

Equipment Introduction Disc-type drawing machines are best suited for drawing highly ductile tubes such as red copper and aluminum. They are also commonly used for drawing extra-long tubes, such as stainless steel. The capacity of disc-type drawing machines is generally indicated by the diameter of the winch(drum).Winch diameters typically range from 550 to 2900 mm, with the largest reaching 3500 mm. Drawing forces typically range from 8.8 to 55 kN. Disc-type drawing machines come in various configurations, generally classified as horizontal or vertical.In order to ensure that the drawn pipes or wires are evenly arranged on the drum A tight spiral shape is generally achieved through two methods: 1. Mold base movement method. The die seat is parallel to the cylindrical drum The uniform movement along the axis makes the pipes neatly arranged 2. Extrusion pipe placement method. The formwork seat remains stationary and passes through the subsequent pipeline Squeeze the previous circle of pipelines and push them forward circle by circle to achieve pipe arrangement.
